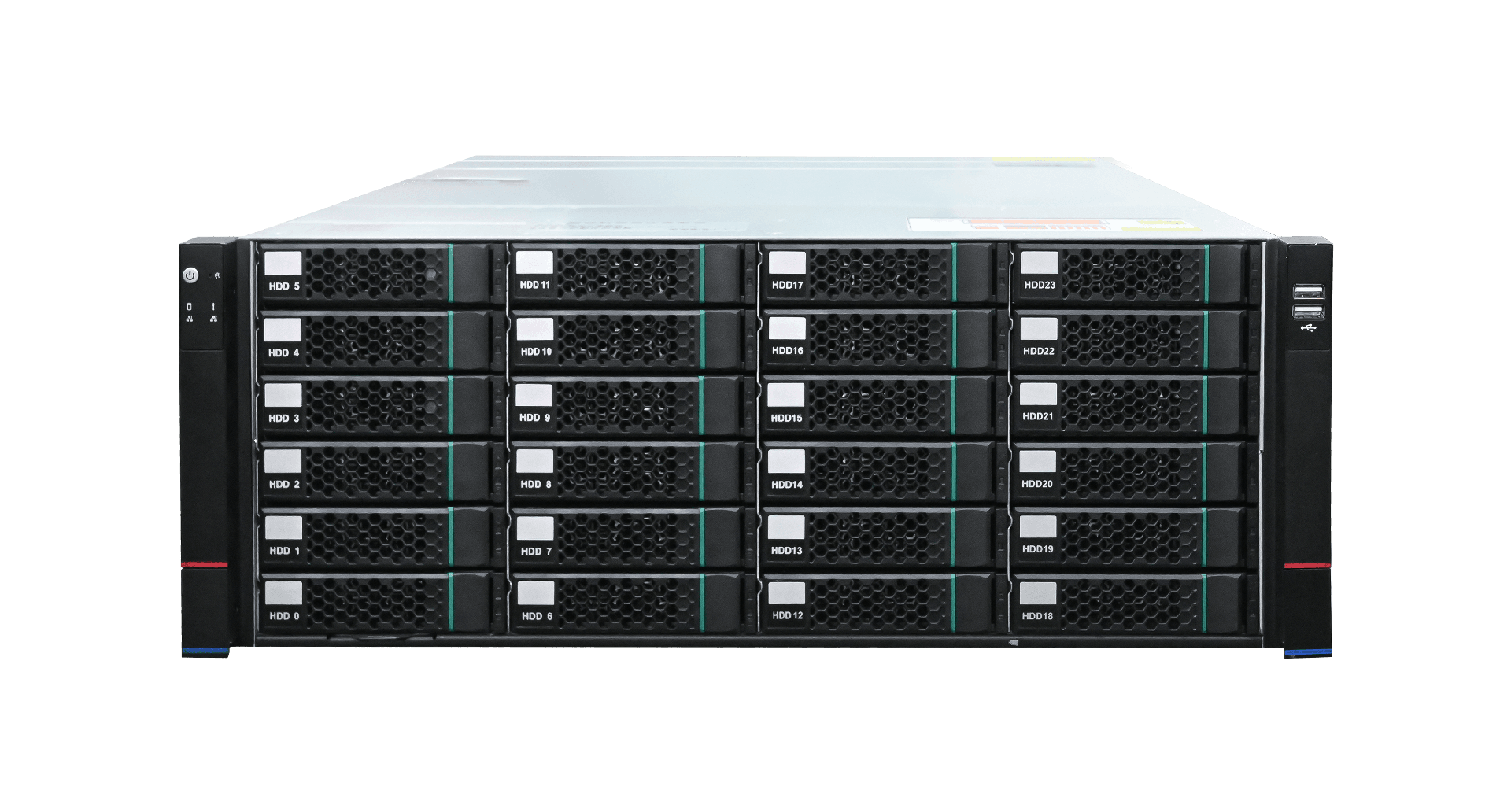

PowerLeader PR4224T is an enterprise-class mass storage server designed for the video surveillance industry, which adopts the IntelC252 high-performance chipset to support Intel Xeon E-2300 series processors, the model supports a maximum memory capacity of 128GB, standard support for 24 3.5-inch/2.5-inch hot-swappable SATA hard drives (full configuration requires the addition of a RAID card), and the flexibility of expanding the full-height PCI-E devices. The highly integrated design delivers strong performance in limited space to support mission-critical operations. The PR4224T offers advanced management features and storage technologies for reliable scalability and high availability.
PowerLeader PR4224T is suitable for small centralised surveillance storage, and can be integrated with surveillance platforms, and can be implanted into surveillance management platforms as required to form a standard Network Video Recorder (NVR), using an integrated integration approach to successfully eliminate the need for surveillance platform servers in the traditional solution, saving the heavy data storage protocols for the encapsulation of the packaging and decapsulation of the consumption of servers and disk arrays to serve the user with an excellent performance-price ratio. It saves the heavy data storage protocol packaging and unpacking consumption of servers and disk arrays, and serves users with excellent performance-price ratio.
Supports 1 Intel Xeon E-2300 seriesprocessor
Supports Intel® Turbo Boost Technology2.0 Frequency, Intel® Advanced Vector Extended Instruction Set (Intel®AVX)
4 DIMM slots: support up to 128GB DDR42666/2933/3200MHz ECC UDIMM
4 PCIe expansion slots: 1*PCIe 4.0 x8(inx16) ,1*PCIe4.0 x8,1*PCIe4.0 x4(in x8) 1*PCIe3.0 x2(in x4), provide users withflexible connectivity options
2 on-board Gigabit data ports with loadbalancing, link aggregation and redundancy support to effectively reducenetwork latency
4U space, the entire use of performance/density/expansionof the maximum design, safe city, smart city, as well as banks, transport,government, public security, enterprises and institutions of the videosurveillance application scenarios
Extreme system cooling design, energy efficient, withexcellent energy efficiency
Maximum support for 1 NVME M.2 SSD, with CPU pass-throughdesign to reduce I/O latency.
Optional support for high reliabilityRAID5, improve data processing performance and protect data function.
Adopts intelligent cooling system toeffectively reduce noise pollution and create a constant temperature space inthe box; fully shielded against electromagnetic radiation, anti-interference,and anti-static (EMI) design.
Support Intel® Trusted ExecutionTechnology (Intel® TXT) provides reliable protection for virtual and cloudenvironments.
Standard 650W single power supply withoptional support for 550W/800W 1+1 fully redundant power supply provides highersecurity for server operation.
Optional TPM2.0 encryption module toprotect data security
| Name | PR4224T |
|---|---|
| Form | 4U Rack |
| CPU | 1 Intel Xeon E-2300 series processor |
| Chipset | C252 |
| RAM | 4 DIMM slots, supporting up to 128GB DDR4 2666/2933/3200MHz ECC UDIMMs |
| Storage | 24 * 3.5-inch/2.5-inch hard drives (front hot-swappable), built-in 2 * 2.5-inch hard drives, external SAS expansion card to support SAS hard drives. —RAID card is required for full configuration. |
| M.2 | 1 * M.2 interface (PCI-E 3.0 x4), support 2280/22110 |
| I/O Interface | 2 * RJ-45 network ports at the rear of the chassis 6 * USB ports, 2 at the front of the chassis, 4 at the rear of the chassis 1 * VGA, 1 * DVI 1 * IPMI management port |
| NIC | On-board 2 Gigabit data ports, optional external Intel Gigabit and 10GbE cards available |
| PCIe Extension | 4 * PCIE: 1*PCIe 4.0 x8(in x16) ,1*PCIe4.0 x8,1*PCIe4.0 x4（in x8）1*PCIe3.0 x2（in x4） |
| GPU | Optional Graphics Card |
| PSUs | Standard 650W single power supply, optional 550W/800W 1+1 redundant power supplies |
| CD/DVD Drive | Optional USB interface thin optical drive |
| OS | Windows® : Windows® 10 (64 bit) Linux: RedHat Enterprise Linux Server 7.6 (64 bit) and above (same as Centos) Ubuntu 20.04 (64 bit) and above. |
| Environmental Temperature | Operating temperature: 10 ℃ ~ 35 ℃ Non-operating temperature: -40 ℃～70 ℃ |
| Relative Humidity | Non-operating 95% non-condensing at 25°C to 30°C |
| Noise | Side sound pressure <50dBA in operating mode Sound intensity 6.2BA at ambient temperature <28°C |
| Electrostatic Discharge | 15KV per Intel ambient temperature test specification |
| Safety Standards (China) | CCC |
